For high-power load scenarios, CSB HRL series long-life high-rate VRLA-AGM batteries come in 6V and 12V top-terminal versions, with 15 models in total, suited to UPS and data center high-rate discharge duty.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|

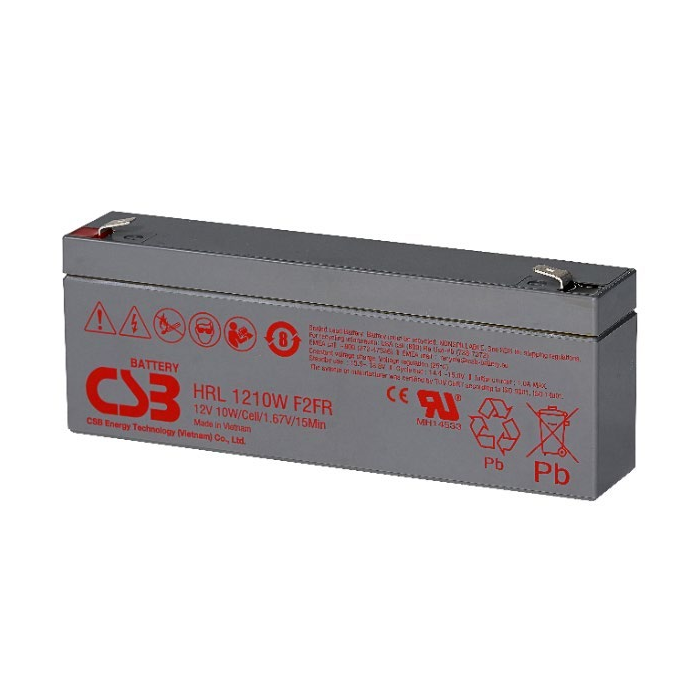

HRL1210W | 12V 10W | 1.10 kg | The CSB HRL1210W from the HRL series is a 12V valve-regulated sealed lead acid battery that combines AGM and pure lead technology. It delivers a nominal capacity of 10W at the 15-minute rate and 20.7 W/cell at the 5-minute rate, making it ideal for high-rate float backup applications such as data center UPS systems. |
|

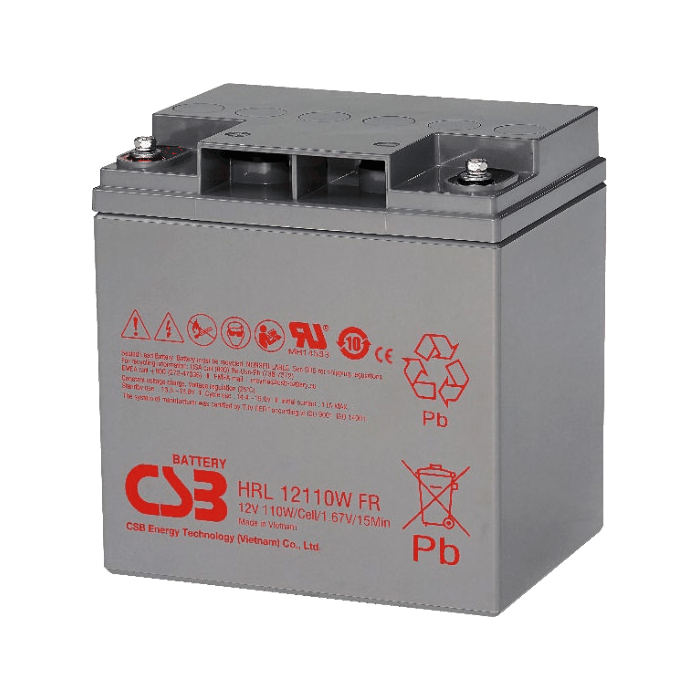

HRL12110W | 12V 110W | 9.90 kg | The CSB HRL12110W is a 12V VRLA battery in the HRL series, utilizing AGM and pure lead technology, designed primarily for data center UPS and other high-rate float standby applications. The battery has a 15-minute rate nominal capacity of 110W, a 5-minute rate output of 211 W/cell, and a design float life of up to 10 years. |
|

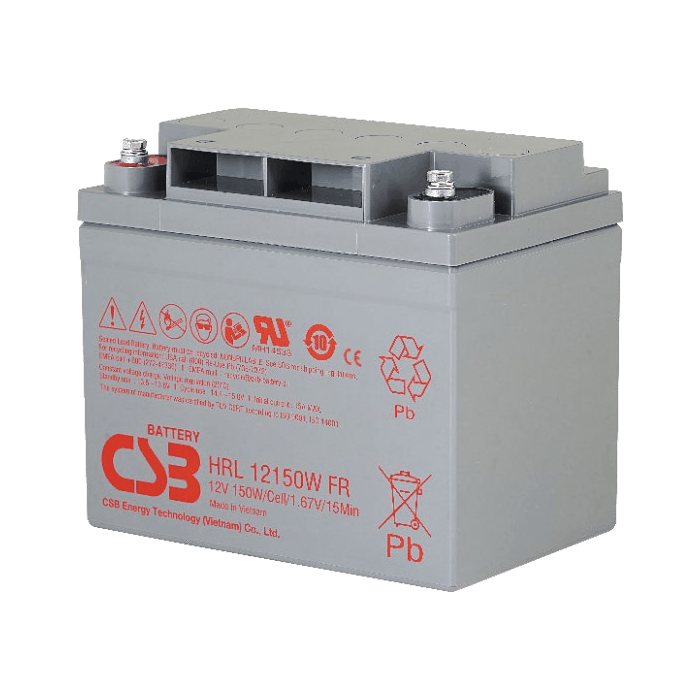

HRL12150W | 12V 150W | 11.95 kg | The CSB HRL12150W is a 12V VRLA battery from the HRL series with a 15-minute rate nominal capacity of 150W. Combining pure lead and AGM technology, it is designed primarily for high-rate float standby applications such as data center UPS systems. |
|

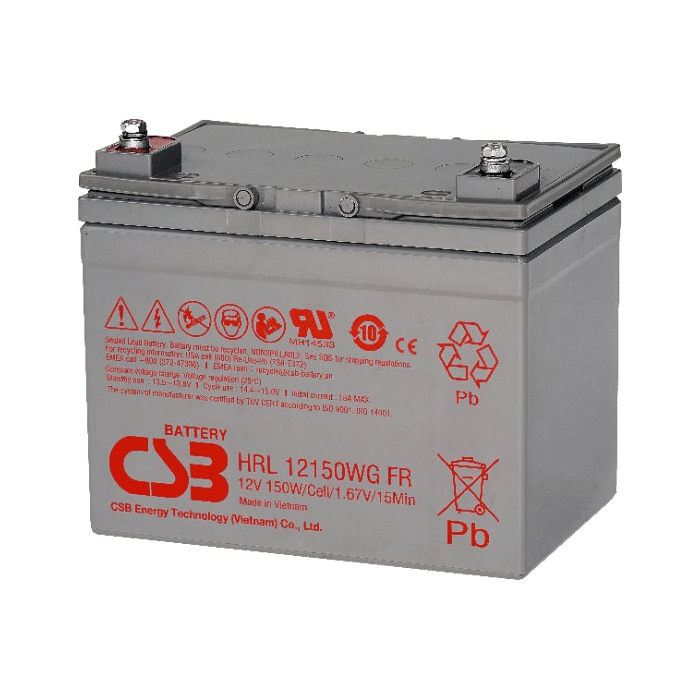

HRL12150WG | 12V 150W | 11.95 kg | The CSB HRL12150WG is a 12V VRLA battery in the HRL high-rate pure lead series, with a 15-minute rate nominal capacity of 150W. It is designed primarily for float standby applications such as data center UPS systems, featuring an AGM maintenance-free construction and a float design life of up to 10 years. |
|

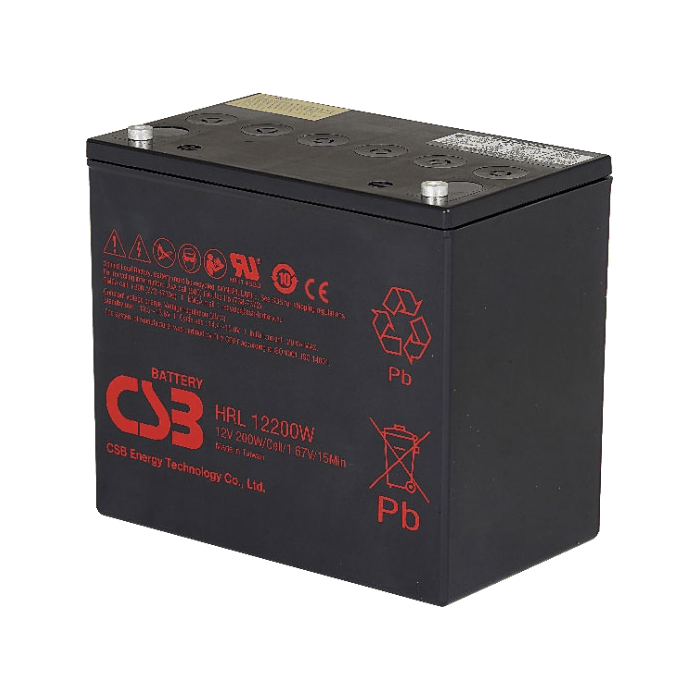

HRL12200W | 12V 200W | 17.30 kg | 12V VRLA battery CSB HRL12200W, part of the HRL high-rate pure lead series, 385W per cell at the 5-minute rate, 200W at the 15-minute rate, for data center UPS float standby. |
|

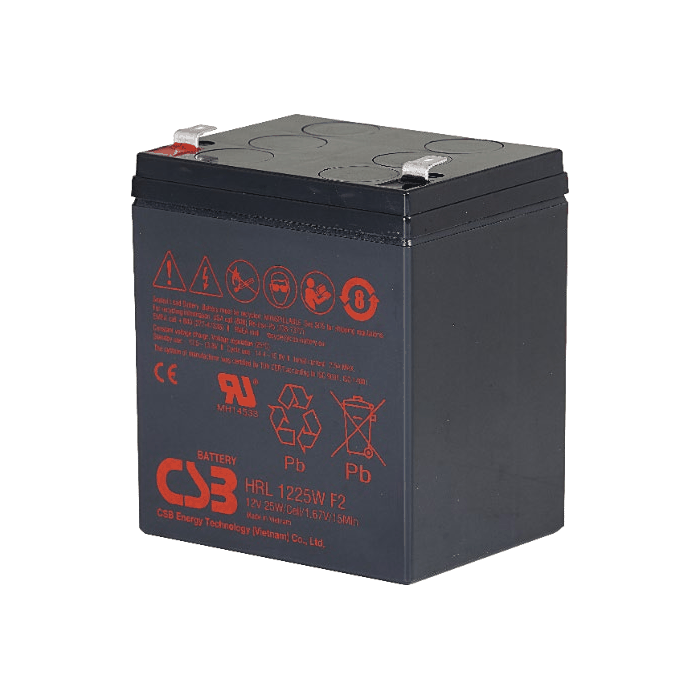

HRL1225W | 12V 25W | 1.95 kg | The CSB HRL1225W is a 12V valve-regulated sealed lead-acid battery delivering 25W at the 15-minute rate. Combining pure lead and AGM technology, it offers long design life and is suited to high-rate float standby requirements such as data center UPS systems. |
|

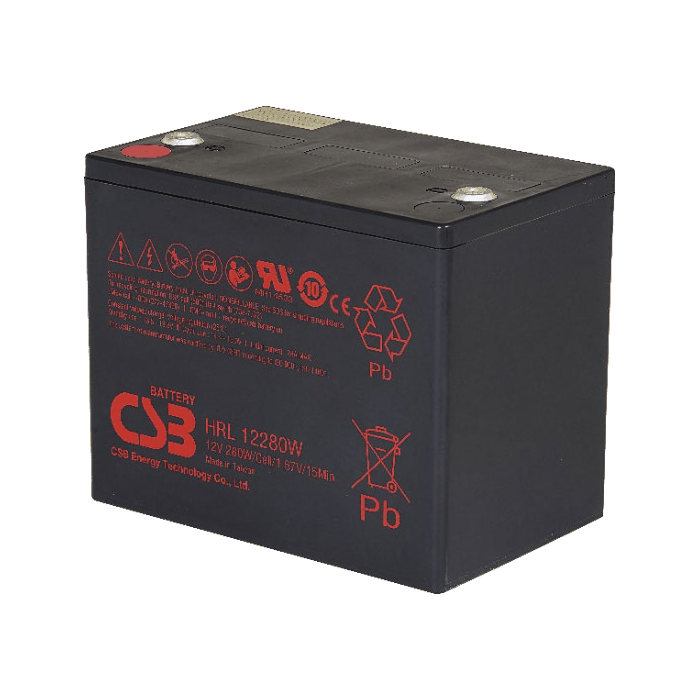

HRL12280W | 12V 280W | 25.80 kg | The CSB HRL12280W is a 12V valve-regulated sealed lead-acid battery in the HRL series, with a nominal capacity of 280W at the 15-minute rate. It uses AGM technology and pure lead construction, designed for high-power loads such as data center UPS systems, with a design float life of up to 10 years. |
|

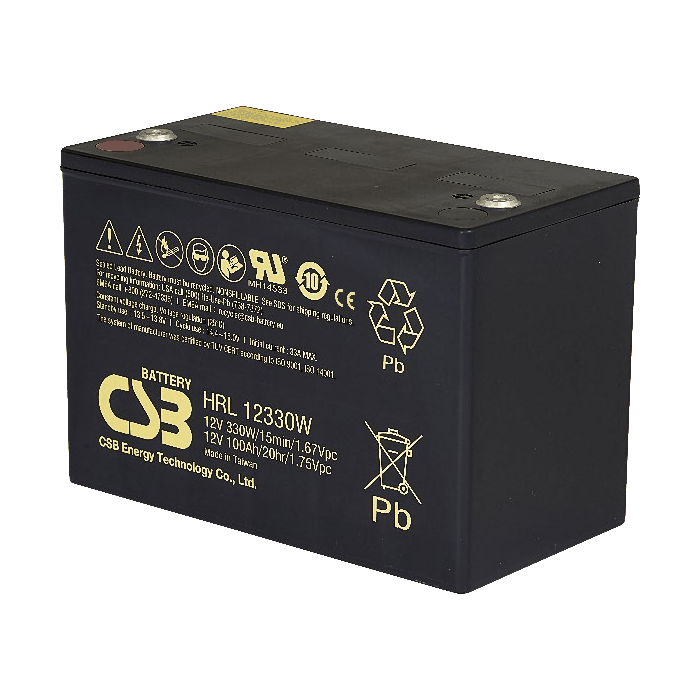

HRL12330W | 12V 330W | 29.60 kg | The CSB HRL12330W is a 12V VRLA battery in the HRL series, featuring AGM and pure lead technology. It offers a nominal capacity of 100Ah at the 20-hour rate and 330W at the 15-minute rate, making it suitable for high-rate float backup applications such as data center UPS systems. |
|

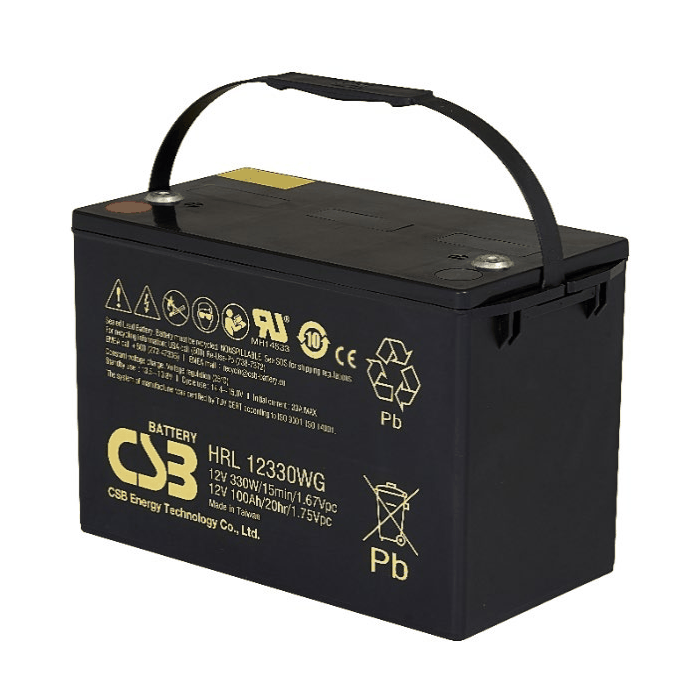

HRL12330WG | 12V 330W | 29.60 kg | The CSB HRL12330WG is an HRL series 12V valve-regulated sealed lead-acid battery with a nominal capacity of 100Ah (20-hour rate) and 330W at the 15-minute rate. It utilizes pure lead and AGM technology, offers a design life of up to 10 years, and is primarily intended for high-power float standby applications such as data center UPS. |
|

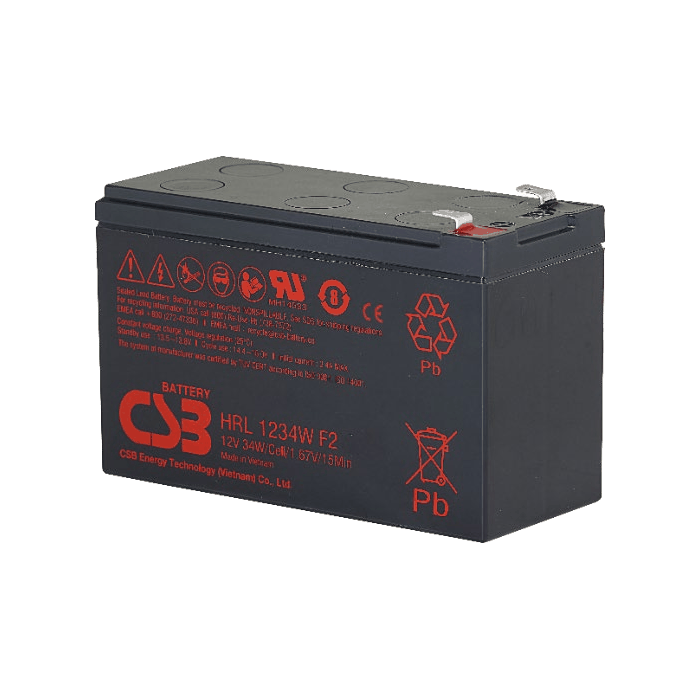

HRL1234W | 12V 34W | 2.70 kg | The CSB HRL1234W is a 12V VRLA battery in the HRL series with a 15-minute rate nominal capacity of 34W. Combining pure lead and AGM technology, it is suitable for data center UPS and other high-rate float standby power applications. |
|

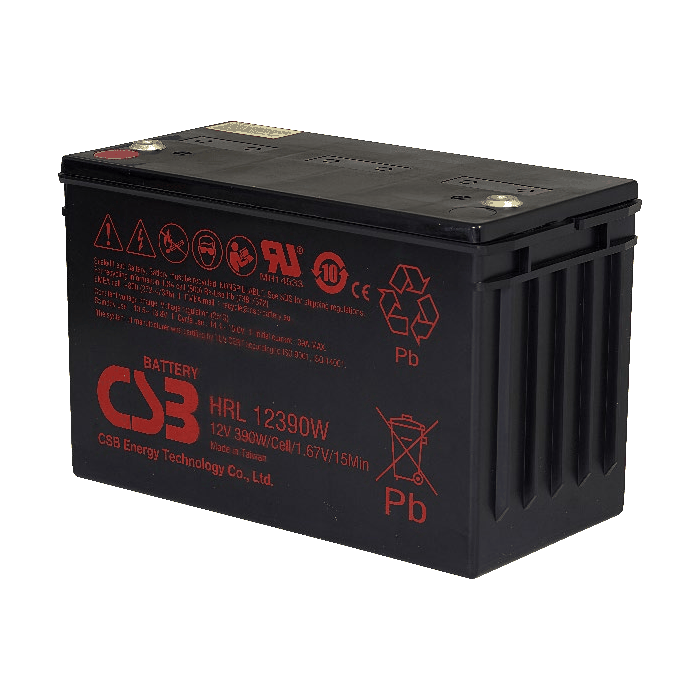

HRL12390W | 12V 390W | 33.00 kg | As a 12V VRLA battery in the HRL series, the CSB HRL12390W delivers 390W nominal capacity at the 15-minute rate and 700W/cell at the 5-minute rate. Featuring pure lead and AGM technology, it is designed for high-rate float standby applications such as data center UPS systems. |
|

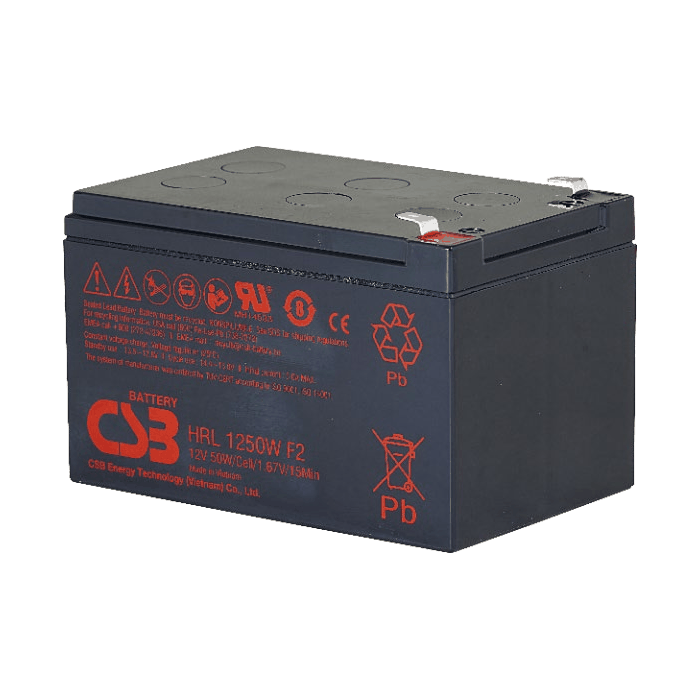

HRL1250W | 12V 50W | 3.90 kg | The CSB HRL1250W is part of the HRL long-life high-rate pure lead series. It is a 12V VRLA battery with a nominal capacity of 50W @15min-rate, suitable for data center UPS and other float standby applications. |
|

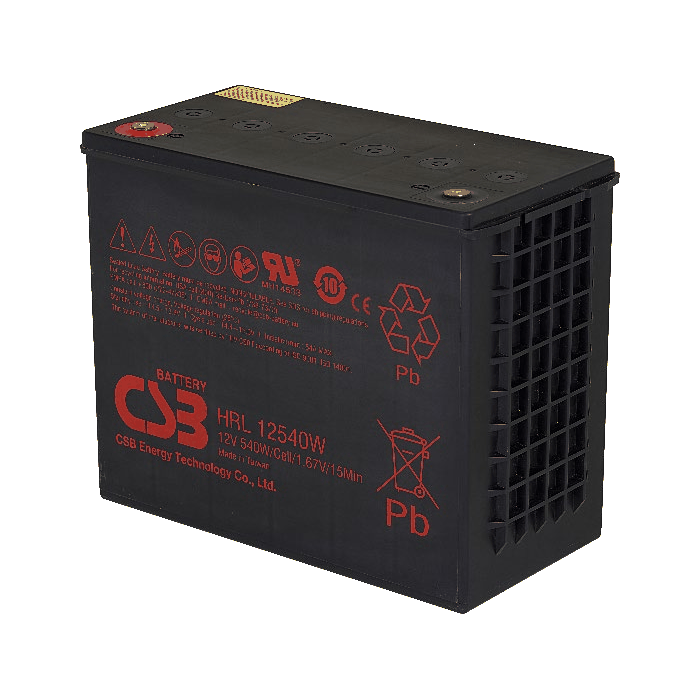

HRL12540W | 12V 540W | 43.90 kg | Designed for high-rate float standby requirements such as data center UPS, the CSB HRL12540W battery is suitable. It belongs to the HRL series 6V+12V top terminal VRLA-AGM products, with a voltage of 12Vdc and a capacity of 540W@15min-rate, 838W/cell at 5 minutes, and 542W/cell at 15 minutes. |
|

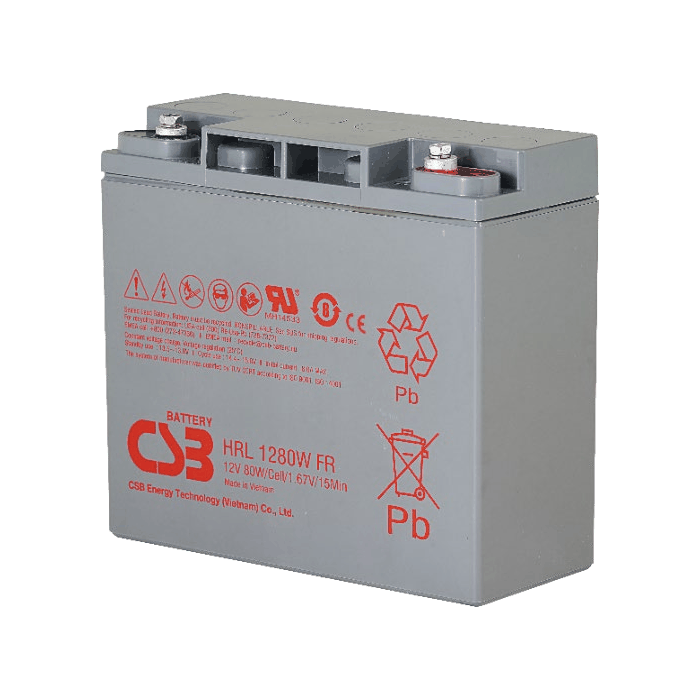

HRL1280W | 12V 80W | 6.60 kg | The CSB HRL1280W in the HRL series is a 12V valve-regulated sealed lead-acid battery featuring AGM technology and a pure lead design, with a 15-minute rate nominal capacity of 80W, making it suitable for high-rate float standby applications such as data center UPS systems. |
|

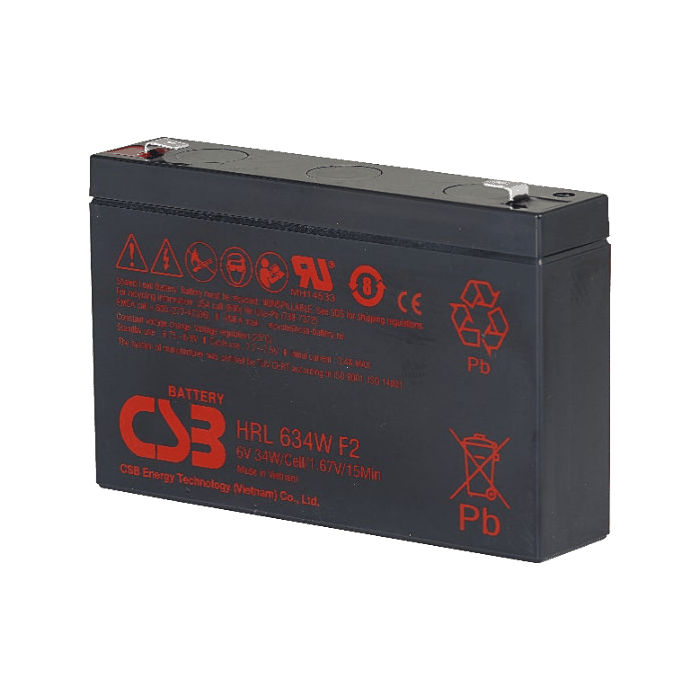

HRL634W | 6V 34W | 1.32 kg | The CSB HRL634W from the HRL series is a 6V valve-regulated sealed lead-acid battery that combines AGM technology with a pure lead construction. Its 15-minute rate nominal capacity reaches 34W, meeting the high-rate float standby power needs of data center UPS and similar applications. |
